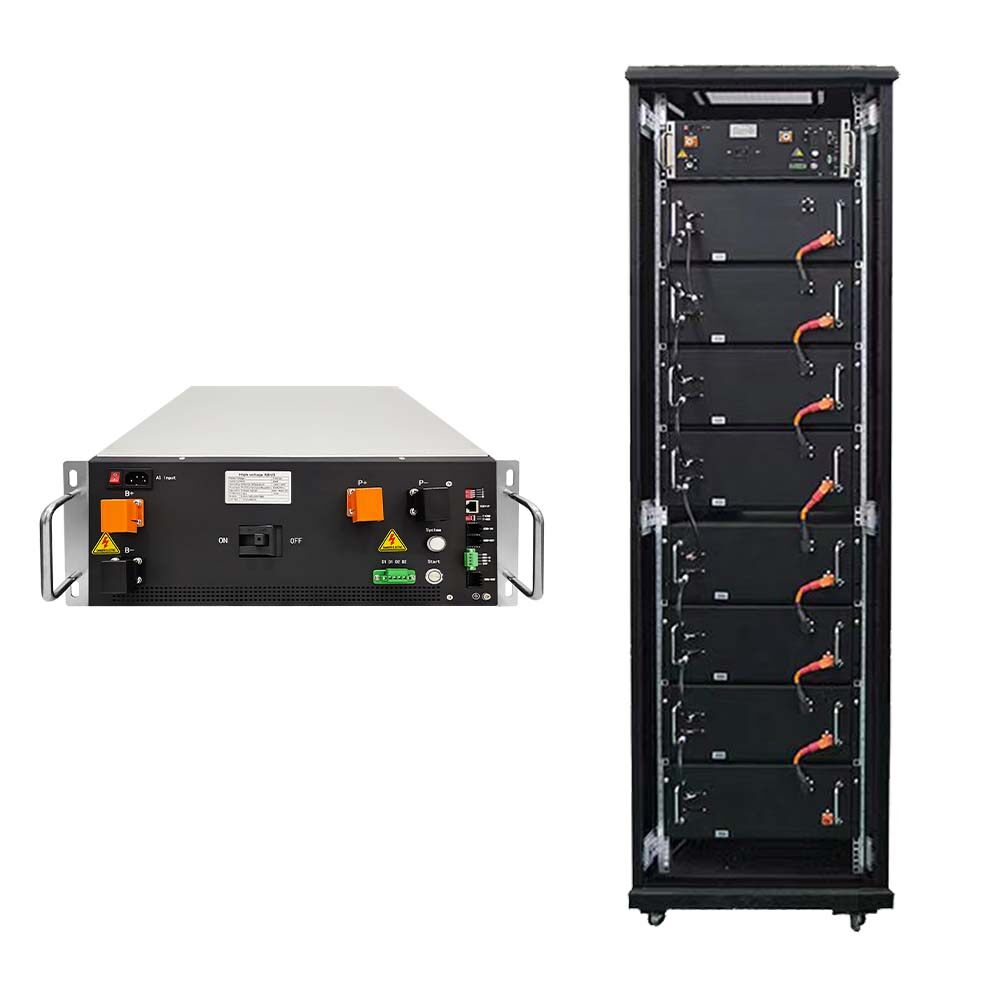

112S358.4V 250A HV BMS Energy Storage Systems

Short Description:

• Voltage Range: 120V~350V, 260V~750V, 500V~1000V
• Rated Current: 125A, 160A, 250A
• Parallel: Supports up to 15 BMS connected in parallel.
• Compatible with most well-knowninverters on the market.
• Monitor and manageLFP, LTO, and NMC batteries.
• Application:Residential ESS, Industrial & Commercial ESS, UPS System,etc.

Detailed Description:
BMS Configuration:
112S358.4V 250A master BMS * 1set
16S slave BMU * 7 sets
16S wire harness * 7 sets (16S 51.2V battery pack, 7 battery packs connected in series for 112S358.4V 250A system.)

BMS Features：

• Advanced battery management system — highly integrated battery management system can realize seamless monitoring.
• Perfect self inspection and operation status detection function, combined with HMI display screen, the system operation information is clear at a glance.
• Perfect and reliable system control and protection strategies to fully ensure the safety of the battery andescort the extension of the service life of the battery pack.
• Modular design, configurable and expandable — multiple energy storage units can be flexibly combined toexpand into a larger energy storage system, and can support up to 200 batteries in series.
• Rich communication interfaces — RS485, CAN, Ethernet, dry contact input and output interfaces,supporting communication with most PCS/Inverter/UPS and monitoring servers on the market.
• Flexible communication interface protocol — the factory comes with the company’s communicationprotocol, and PCS / Inverter / UPS of different manufacturers can also be adapted according to customer needs.
• Great capacity data memory — the built-in high-capacity memory chip can store a large number of key operation data, and SD card can be added to store the historical data of the cell.
• Automatic circulation control and automatic parallel / offline control can easily realize the parallel connection of battery packs

Specification:
