144S460.8V 250A HV Relay BMS for ESS System

Short Description:

• Voltage Range: 120V~350V, 260V~750V, 500V~1000V
• Rated Current: 125A, 160A, 250A
• Parallel: Supports up to 15 BMS connected in parallel.
• Compatible with most well-knowninverters on the market.
• Monitor and manageLFP, LTO, and NMC batteries.
• Application:Residential ESS, Industrial & Commercial ESS, UPS System,etc.



Detailed Description:

BMS Configuration:

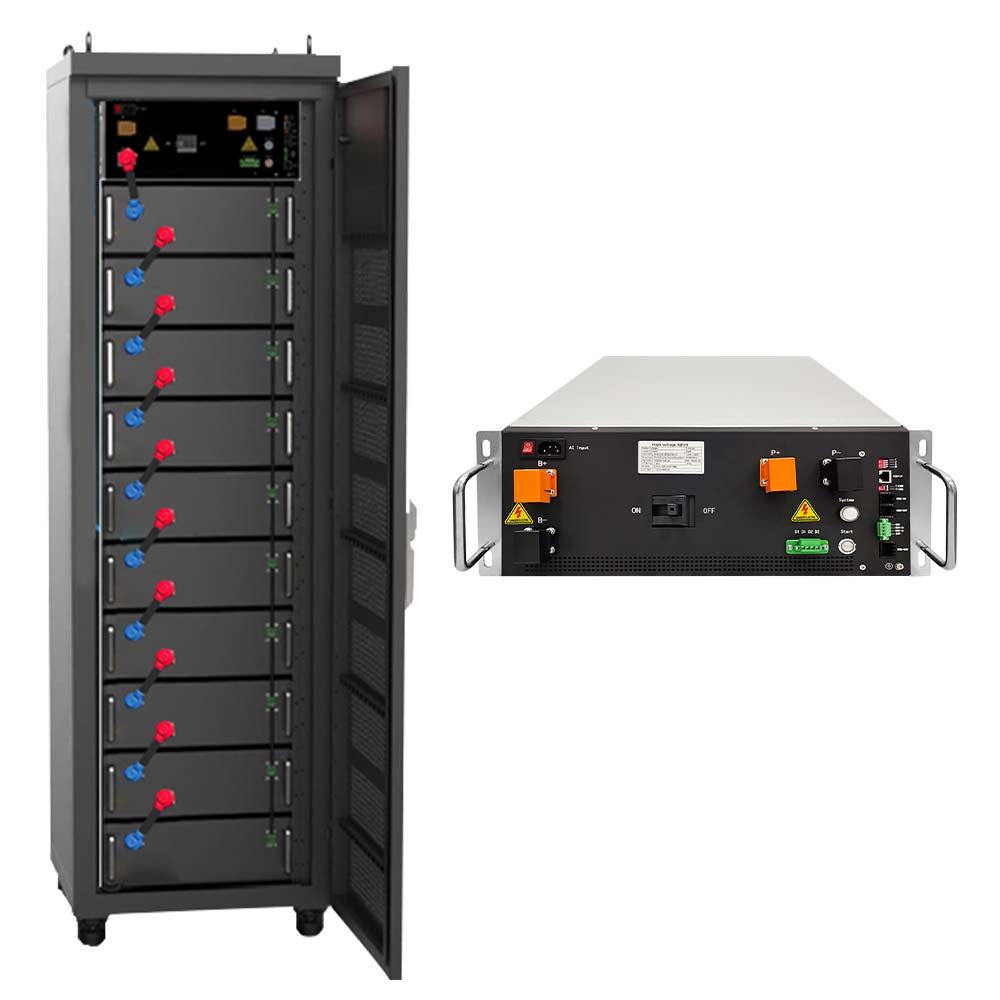

144S460.8V 250A master BMS * 1set
16S slave BMU * 9 sets
16S wire harness * 9 sets (16S 51.2V battery pack, 9 battery packs connected in series for 144S460.8V 250A system.)



BMS Features：

• Advanced battery management system — highlyintegrated battery management system can realize seamless monitoring.

• Perfect self inspection and operation status detection function, combined with HMI display screen, the system operation information is clear at a glance.

• Perfect and reliable system control and protection strategies to fully ensure the safety of the battery and

escort the extension of the service life of the battery pack.

• Modular design, configurable and expandable — multiple energy storage units can be flexibly combined to

expand into a larger energy storage system, and can support up to 200 batteries in series.

• Rich communication interfaces — RS485, CAN, Ethernet, dry contact input and output interfaces,

supporting communication with most PCS/Inverter/UPS and monitoring servers on the market.

• Flexible communication interface protocol — the factory comes with the company’s communication

protocol, and PCS / Inverter / UPS of different manufacturers can also be adapted according to customer needs.

• Great capacity data memory — the built-inhigh-capacity memory chip can store a large number of key operation data, and SD card can be added to store the historical data of the cell.

• Automatic circulation control and automatic parallel / offline control can easily realize the parallel connection of battery packs



Specification:

Basic Parameters	Rated Current	125A, 160A, 250A
[TD] Basic Parameters [/TD] Voltage Range	120V~350V, 260V~750V, 500V~1000V
[TD] Basic Parameters [/TD] Power consumption	≤25W(Three wire systems / Center tap) ≤15W(Two wire systems)
[TD] Basic Parameters [/TD] Current sampling accuracy	1%FSR
[TD] Basic Parameters [/TD] Insulation withstand voltage	2800VDC ＜1mA 1min
[TD] Basic Parameters [/TD] Ingress protection	IP20
[TD] Basic Parameters [/TD] Size（W*H*D)	482*180*500（mm）
[TD] Basic Parameters [/TD] Net Weight	～22Kg
Communication Port	Communication interface with BMU	CAN
[TD] Communication Port [/TD] Communication interface with PCS/UPS	RS485/CAN
[TD] Communication Port [/TD] Communication interface with SBMS	RS485/CAN
[TD] Communication Port [/TD] Communication with monitoring software/EMS	Ethernet
Basic Function	Battery charge&discharge Management	Available
[TD] Basic Function [/TD] Battery Temperature Management	Available
[TD] Basic Function [/TD] IAP Upgrade	Available
[TD] Basic Function [/TD] System protection parameter setting	Available
[TD] Basic Function [/TD] Short circuit protection	Available(1000V 25KA 20ms)
[TD] Basic Function [/TD] Pre-charge function	Available
[TD] Basic Function [/TD] Parallel circulation control	Available
[TD] Basic Function [/TD] Event record	Available 5000
[TD] Basic Function [/TD] Dry contact	Maximum 2 dry contact outputs
[TD] Basic Function [/TD] Dual power supply	available (Battery + municipal power supply, municipal power in priority)
Other	Appearance, Color	RAL9005 Black
[TD] Other [/TD] Installation method	Suitable for installation in standard 19-inch racks
[TD] Other [/TD] Incoming and outgoing line mode	Front side in and front side out
[TD] Other [/TD] Operating temperature	-20℃～45℃(When the temperature is above 45℃, the current must be reduced or only operated at full current for a short period of time.)
[TD] Other [/TD] Operating ambient humidity	5%～75%RH
[TD] Other [/TD] Comply with National standards	GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
[TD] Other [/TD] Safety Certification	CE:IEC62477-1 EN61000-6-2/4
Functions Optional	Insulation detection	Applicable to system voltage ≧300V
[TD] Functions Optional [/TD] HMI External display	4.3 inches, 7 inches(external, optional)
[TD] Functions Optional [/TD] Stand-alone or parallel function	Set up before leaving the factory
[TD] Functions Optional [/TD] System with center tap	Available(Optional)
